Need to view, print or export legacy Personal Designer CAD drawings?
DraftView for PD is the most complete solution available for managing Personal Designer CAD data.

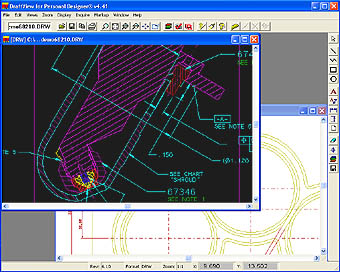

View, print, or export your DRW files from the convenience of Microsoft Windows, without the restrictions of Personal Designer's DOS requirements. Support for DRW files created by Personal Machinist, microCADDS, MicroDraft and 4Design is also included.

In many cases the solution for legacy CAD data is translation into other CAD systems. DraftView can export PD drawings using the popular DXF format. With a proven DXF translator, DraftView uses the latest technology to create the best available PD to DXF translations. DXF exports can be done individually as needed, or in "batch", by the thousands. As a PD viewer, DraftView's distinct advantage over other translators is that you can view precisely what is being translated.

DraftView has an intuitive, easy-to-use interface. It can be installed and licensed on individual PCs, or "floated" from a network server.

With DraftView, accessing PD drawings has never been easier!
CLICK HERE to read more...

Capabilities

Personal Designer Viewing:

  • Personal Designer, Personal Machinist, MicroDraft, microCADDS, 4Design
  • All Revisions of the Above
  • All 2D, 3D and MView Entities
  • All Text Fonts, Including User-Customized Fonts
  • Native Windows Application

    PD Output Capabilities:

  • Export PD as DXF, TIFF or JPG files
  • Batch Export PD as DXF
  • Command Line PD to DXF options
  • Export PD as PDF or HPGL files (via printer drivers)
  • Export PD as BMP or Windows Metafiles
  • Copy/Paste PD Images Into Other Windows Applications

    Standard Viewing Features:

  • Pan and Zoom
  • Layer Visibility Control
  • Print and Batch Print
  • Markup DRW files
  • Rotate 3D Model
  • Measure Distances (3D, 2D, intersections, endpoints, etc)
  • Verify Entity Information
  • Count Entities

    Supported File Formats:

  • BMP (Windows Bitmap Images)
  • DIB (Device-Independent Bitmap Images)
  • CAL, CG4, GP4 (CALS Group 4 Raster; Type I; MIL-STD-1840)
  • CGM (Computer Graphics Metafile - CALS Model)
  • DRW (Personal Designer, Personal Machinist, MicroDraft, microCADDS, 4Design)
  • DWG (AutoCAD native format; AutoCAD 2.5 through AutoCAD 2002®)
  • DXF (AutoCAD Data Interchange format)
  • GIF (CompuServe's Graphical Image File format)
  • HP-GL & HP-GL/2 (Hewlett-Packard Graphics Language files)
  • JPEG (Photo imagery standard widely used on the internet)
  • PCX (PC-Paintbrush native format)
  • WMF (Windows meta files)
  • EMF (Enhanced Windows 95/NT meta files)
  • SLD (AutoCAD Slide files)
  • TIFF (Tagged image file format)

    • Pricing Information


    Microsoft Windows® Version
    (network or stand-alone)
    Price Per License (each)
    Description
    1
    2-3
    4-6
    7+
    DraftView for PD Lite
    (View & Print PD Only)
    $ 425
    $ 305
    $ 245
    $ 200
    DraftView for PD Unlimited
    (Includes DRW to DXF translator)
    $ 525
    $ 380
    $ 300
    $ 245
    Shipping & Handling
    Federal Express Shipping Fee
    (No shipping fee for internet delivery)
    Within the U.S. $25, Canada $35
    All other locations $60



    Purchase Online
